Description

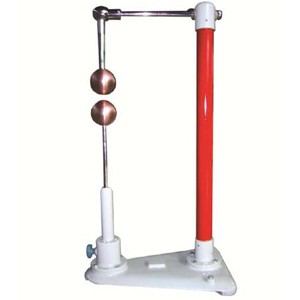

QS Series ball gap protector
Ball gap protector and high voltage testing transformer, voltage regulator, the console are composed the full set of testing equipments, to measure the power frequency high voltage when doing power frequency high voltage testing, to protect the test subjects when doing power frequency withstand voltage testing.
Our company produced QS-10 type, QS-50 type are manual regulation, Q-15 type, Q-25 type, Q-50-1 type are manual regulation or electrical regulation, QD-75 type, QD-100 type are all electrical regulation.
Model Size | D | H | L*B |
QD-75 | 750 | 2975 | 1100*1100 |
QD-100 | 1000 | 3450 | 1400*1400 |
QS type ball gap measurer dimensions
Model Size | D | H | L | B |
QS-10 | 100 | 1063 | 650 | 400 |
Q-15 | 150 | 1650 | 850 | 500 |
Q-25 | 250 | 2350 | 1125 | 600 |
QS-50 | 500 | 4100 | 2200 | 1200 |
Note: Above is for standard specification, We also accept customized order.
