Description

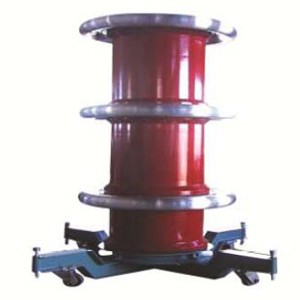

YKD series high voltage testing electric reactor
Overview

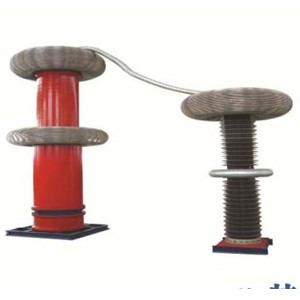

YKD testing electric reactor in series with high voltage capacitor, generate 750KVhigh voltage, and can guarantee the partial discharge is less than 5pC. It can be used to test under the 700kv testing voltages requirements, no partial discharge requirements of electrical products, and also under 250kv voltage test requirements, the electric equipment product that the partial discharge is less than 5 PCS.
Brief introduction of structure
This product adopts insulation tube as the shell, aluminum equalizing ring, and use no yoke iron core structure type iron core, winding pack on the outside of the core, its inductance is between hollow electric reactor and iron core electric reactor, voltage current characteristic close to linear.
Usage
It can be used as a composite insulation dry type current transformer, insulation rod, high voltage insulator, etc, for the use of withstand voltage testing.
Dimensions
Model Size | A | B | C |
YKD-250/250 | Φ1200 | 2000 | 1000 |
YKD-500/2*250 | Φ1500 | 4100 | 1000 |
YKD-750/3*250 | Φ2100 | 6200 | 1200 |
Specifications
Size Model | Rated voltage KV | Rated capacity KVA | Rated current A | Inductance H | Q value | Partial discharge pC |
YKD-250/250 | 250 | 250 | 1 | 400 | 40-50 | <5 |
YKD-500/2*250 | 500 | 500 | 1 | 800 | 40-50 | <5 |
YKD-750/3*250 | 750 | 750 | 1 | 1200 | 40-50 | <5 |
Note: Above is for standard specification, We also accept customized order.
