Description

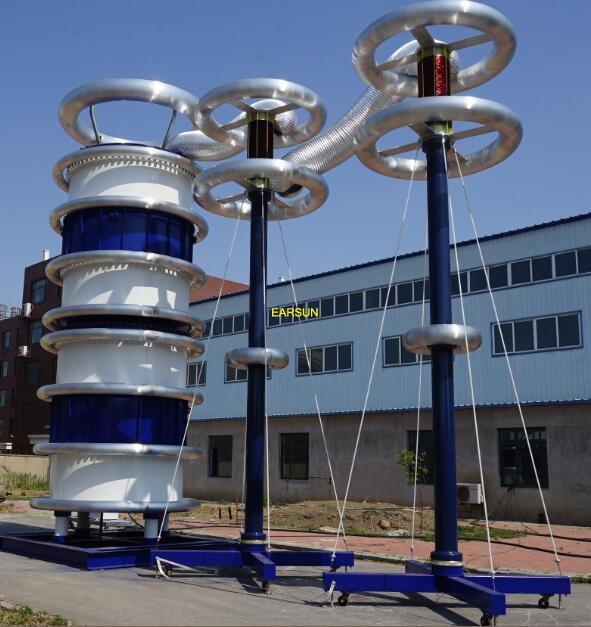

Series resonance electric reactor YKTY

Overview

Tunable resonance electric reactor applied to produce no partial discharge of high voltage ac power supply, its characteristic is to use electric reactor and the capacitance of the series resonance circuit, adjust the electric reactor inductance, make the circuit generate resonance, to produce resonance voltage on the capacitance test subject, so as to meet the requirement of withstand voltage testing voltage.

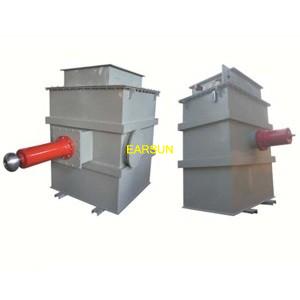

There is a set of excitation transformer in resonance electric reactor to supply power for electric reactor. Excitation transformers under the help of last unit voltage regulator, from zero make a smooth continuous adjustment to any scheduled voltage.

Advantages of the equipment：

Resonance has a little noise;

High quality factor;

Partial discharge capacity is small;

Small input capacity, high output capacity;

Usage

It can be used as power cable, power capacitor, large generators, etc, for the use of withstand voltage testing.

Specifications and main data（Applicable to power cable）

Specifications and main data（Applicable to generator）

Note: Above is for standard specification, We also accept customized order.
