Description

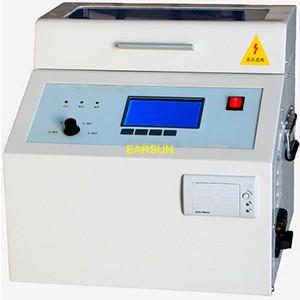

YT-100 Transformer oil tester is an automatic analysis equipment to do the transformer oil withstand breakdown voltage test process
1 | Test report printer | Build in |
2 | Power supply | 200V to 250V AC single phase at 50Hz |
3 | Test cells capacity | 300 to 500 ml |
4 | Electrodes | Stainless steel spherical 36 mm diameter / hemispherical 25 mm radius, 2.5mm gap as per BS-148/72 or IEC-60156 |
5 | Test voltage | 0-80 KV or 0-100KV |
6 | Rated withstand voltage | 2 KV / second |
7 | Voltage measurement accuracy | +/-1 KV |
8 | Resolution | 0.1 KV +/- 1%, +/- 2 digits |
9 | Display | LCD colour display with back light |
10 | Reference standard | BS EN 60156-96, BS148/EN60156, IEC-60156-95 |
