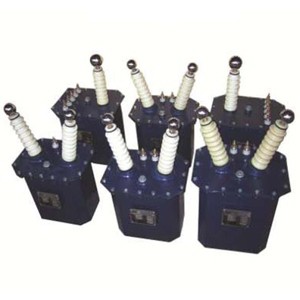

ZYD series rectification transformer
Overview:
ZYD series rectification transformer main effect is as dc charging power supply, it can be used as impulse voltage generator, impulse current generator power supply. It can also be used as a charging power supply of the electric dust collection device.
ZYD series rectification transformer specification
Model | Rated capacity KVA | Input voltage KV | Output voltage KV |
ZYD-5/50 | 5 | 0.22/0.38 | 50 |
ZYD-10/50 | 10 | 0.22/0.38 | 50 |
ZYD-20/50 | 20 | 0.22/0.38 | 50 |
ZYD-50/100 | 50 | 0.22/0.38 | 100 |
ZYD-100/100 | 100 | 0.22/0.38 | 100 |
ZYD-200/150 | 200 | 0.22/0.38 | 150 |
Note: Above is for standard specification, We also accept customized order.
