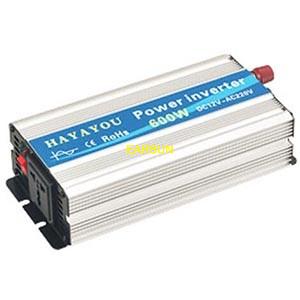

600W Pure Sine Wave Solar Power Inverter

Solar inverter

Power inverter

600W Pure Sine Wave Solar Power Inverter

Model		HA-902-600
Rated power		600W
Peak power		1200W
Input voltage		DC12V	DC24V	DC48V
Output voltage		100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5%
Unload current less than		0.6A	0.4A	0.3A
Output frequency		50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform		Pure Sine Wave
Waveform distortion		THD<3%(Linear Load)
USB port		5V 1A
Max.efficiency		90%
Input voltage range		10-15.5V	20-31V	40-61V
Low voltage alam		10.5±0.5V	21±0.5V	42±1V
Low voltage protection		10±0.5V	20±0.5V	40±15V
Over voltage protection		15.5±0.5V	31±0.5V	61±1V
Low voltage recover		12.3±0.5V	24±0.5V	48±1V
Over voltage recover		14.8±0.5V	29.5±0.9V	59±1V
Protect funtion	Low voltage	Alam at first,voltage continuously reduce.LED Red light on&shut down
	Over voltage	LED Red light on,shut down
	Over load	LED Red light on,shut down
	Over temperature	Alam at first,tempurature continuously rise.LED Red light on&shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature		-10° - + 50°
Storage temperature		-30° - + 70°
Dimension(LxWxH)(mm)		250x113x59
Packing(mm)		265x145x70
Net./gross weight(g)		1140/1240
QTY/Ctn		15Pcs
Meas.Ctn(mm)		300x450x390
Warranty		1 years
Cooling method		Intelligent air cooling
