Description

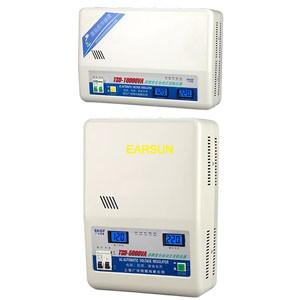

TSD Wall mounted Servo AC Voltage Stabilizer Regulator
This series product is developed on the base of TND series high accuracy full-automatic AC voltage stabilizer; it forms the control system with linear integrated circuit, and drive the contact voltage regulator to start regulating by controlling the servo motor. It is provided with delay, over-voltage, under-voltage, over-current and so on protection function to ensure the safety of the power supply. It has the advantage of high efficiency, no waveform distortion, stable output voltage, less electric consumption and can work continuously.
| Input voltage | 160V-250V(140V-250V) |
| Output voltage | Single phase: 220V or 110V |
| Voltage stabilizing precision | 220V±3% |
| 110V±6% | |
| Input over-voltage protection value | 246V±4V |
| Output voltage delay time | 5±2 min |
| Insulation resistance | ≥2MΩ |
| Withstanding voltage | 1500V/min |
| Efficiency | ≥95% |
| Ambient temp & relative humidity | 0--5°C--40°C less than 90% |
| Frequency (Hz) | 50/60 Hz |
| Model(KVA) | Product size L*W*H(cm) | Packing size L*W*H(cm) | Net weight(kg) | Qty/CNT |
| TSD-3 | 37*25*13 | 42*32*18 | 9 | 1 |
| TSD-4 | 37*25*13 | 42*32*18 | 12 | 1 |
| TSD-5 | 43*30*14 | 49*36*19 | 16 | 1 |
| TSD-6 | 43*30*14 | 49*36*19 | 26 | 1 |
| TSD-7 | 43*30*14 | 49*36*22 | 27 | 1 |
| TSD-8 | 48*32*19 | 52*38*25 | 18 | 1 |
| TSD-10 | 48*32*19 | 52*38*25 | 22 | 1 |
