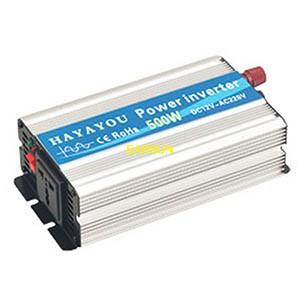

500W Modified Sine Wave Solar Power Inverter

Model		YA-802-500
Rated power		500W
Peak power		1000W
Input voltage		DC12V	DC24V	DC48V
Output voltage		100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5%
Unload current less than		0.3A	0.1A	0.1A
Output frequency		50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform		Modified Sine Wave
USB port		5V 1A
Max.efficiency		90%
Input voltage range		10-15.5V	20-31V	40-61V
Low voltage alam		10.5±0.5V	21±0.5V	42±1V
Low voltage protection		10±0.5V	20±0.5V	40±15V
Over voltage protection		15.5±0.5V	31±0.5V	61±1V
Low voltage recover		12.3±0.5V	24±0.5V	48±1V
Over voltage recover		14.8±0.5V	29.5±0.9V	59±1V
Protect funtion	Low voltage	Alam at first,voltage continuously reduce.LED Red light on&shut down
	Over voltage	LED Red light on,shut down
	Over load	LED Red light on,shut down
	Over temperature	Alam at first,tempurature continuously rise.LED Red light on&shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature		-10° - + 50°
Storage temperature		-30° - + 70°
Dimension(LxWxH)(mm)		225x113x59
Packing(mm)		265x145x70
Net./gross weight(g)		940/1040
QTY/Ctn		15Pcs
Meas.Cth(mm)		300x450x390
Warranty		1 years
Cooling method		Intelligent air cooling
