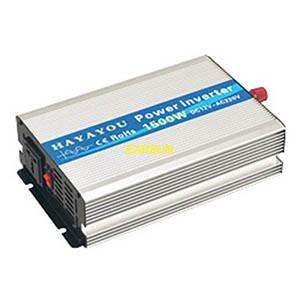

1500W Modified Sine Wave Solar Power Inverter

Solar inverter

Power inverter

1500W Modified Sine Wave Solar Power Inverter

Model		YA-805-1500
Rated power		1500W
Peak power		3000W
Input voltage		DC12V	DC24V	DC48V
Output voltage		100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5%
Unload current less than		0.8A	0.5A	0.2A
Output frequency		50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform		Modified Sine Wave
USB port		5V 1A
Max.efficiency		90%
Input voltage range		10-15.5V	20-31V	40-61V
Low voltage alam		10.5±0.5V	21±0.5V	42±1V
Low voltage protection		10±0.5V	20±0.5V	40±15V
Over voltage protection		15.5±0.5V	31±0.5V	61±1V
Low voltage recover		12.3±0.5V	24±0.5V	48±1V
Over voltage recover		14.8±0.5V	29.5±0.9V	59±1V
Protect funtion	Low voltage	Alam at first,voltage continuously reduce.LED Red light on&shut down
	Over voltage	LED Red light on,shut down
	Over load	LED Red light on,shut down
	Over temperature	Alam at first,tempurature continuously rise.LED Red light on&shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature		-10° - + 50°
Storage temperature		-30° - + 70°
Dimension(LxWxH)(mm)		310x180x78
Packing(mm)		355x215x90
Net./gross weight(g)		3040/3320
QTY/Ctn		8Pcs
Meas.Ctn(mm)		475x380x420
Warranty		1 years
Cooling method		Intelligent air cooling
